Description
Features
• Loncin OHV LC170F-D engine is used. This engine is easy to be started, reliable and durable with stable power output and low fuel consumption. Its fuel consumption per operating area is significantly lower than that of peer companies.
• Easy to use, operate and learn.
• Tools are complete. In addition to standard tools, various tools can be selected to ridge, ditch, earth up, weeding etc. according to local farming needs. And it can meet the operation needs in both flooded field and drought field.
• The operation is free from flat land, hill and hillside restrictions. It can move smoothly and operate in small pieces of land in mountains and hills. And it can operate freely due to its small size in small farming area, such as vegetable greenhouses, orchards, vegetable gardens to achieve a mechanized operation.
• The range of tillage width is up to 80cm.
• The tillage depth is controlled by easy-adjusted damping arm.
• Wheel replacement is convenient.
Technical Details

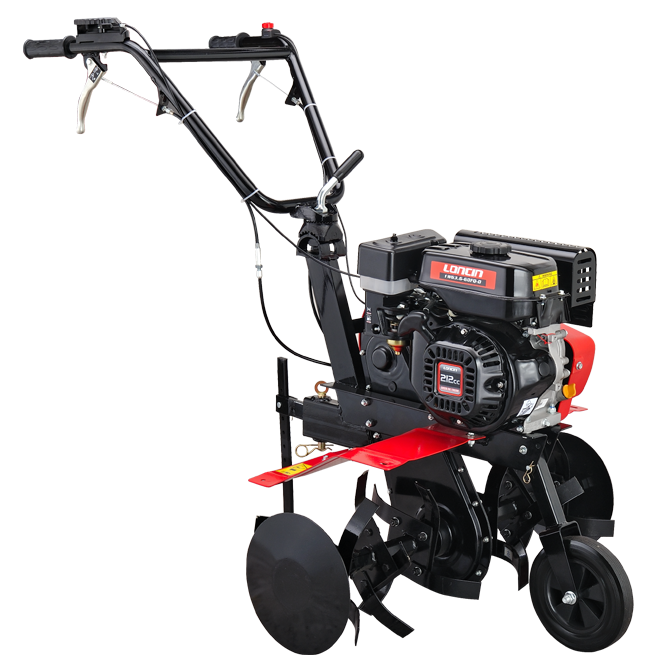

| Model | 1WG3.6-60FQ-D | |
| Engine | Engine Model | LC170F-D |
| Rated power | 4.4kW | |
| Rated speed | 3600 r/min | |
| Displacement | 212CC | |
| Gas oil capacity | 3.0L | |
| Oil capacity | 0.6L | |
| Fuel consumption | ≤30 kg /hm2 | |
| Tiller | Cutting width | 80cm |
| Cutting depth | ≥15 cm | |
| working capacity | 0.1～0.3 m/s | |
| Efficiency per hour | ≥350m2/h | |
| Transmission | Chain | |
| Connecting | Belt | |
| Rated blade speed | 120r/min | |
| Blade Type | Dryland blade | |
| Dimension | 1400×820×1000 mm | |
| Net weight | 60kg | |
